Lab 03 : More Flowgorithm

Pull and Update in VS Code

This lab will explain how to use Flowgorithm for sequence and selection.

Before starting any lab, you need to make sure that the repo in your GitHub is the latest one. Sync the repo if the upstream repo have been updated.

Once the online repo is in-sync, bring those changes down to your PC by clicking Source Control and then ... beside Changes and click Pull.

Creating Our First Flowchart Recall

Launch Flowgorithm by pressing ⊞ Win on your keyboard and type Flowgorithm. If you can't see it make sure you have installed it.

When you first launch it, you will see a simple flowchart, containing only Start and End. This is the default template of the any Flowgorithm projects. Before we edit the file, we need to save the file first.

To know if the file is still unsaved, the name of the file is still called (Untitled). To save the file, click File and then Save As.... The system will prompt you on the location of the file you want it saved. Save it to any location you are comfortable with. Remember this location, you will need to use this later. Name the file exactly as this; lab-03-1.

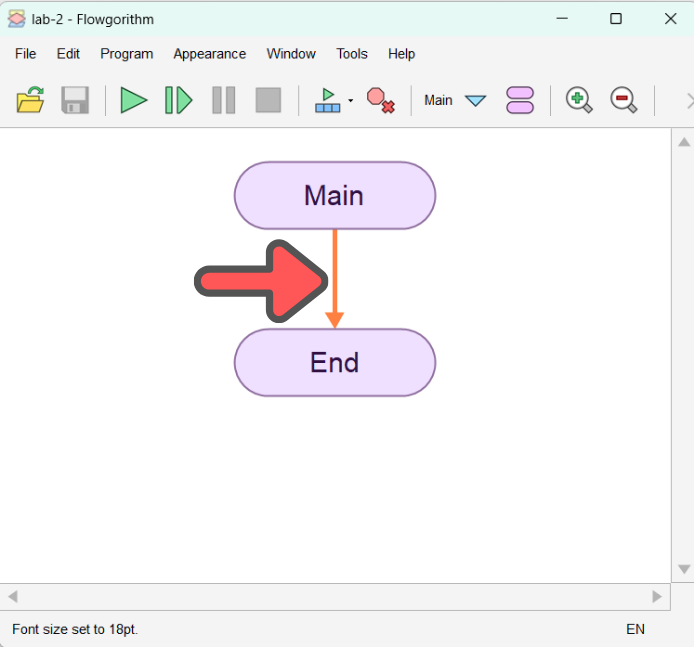

Hover your mouse on the arrow that is connecting Main and End until the arrow turns orange, then left click on the arrow.

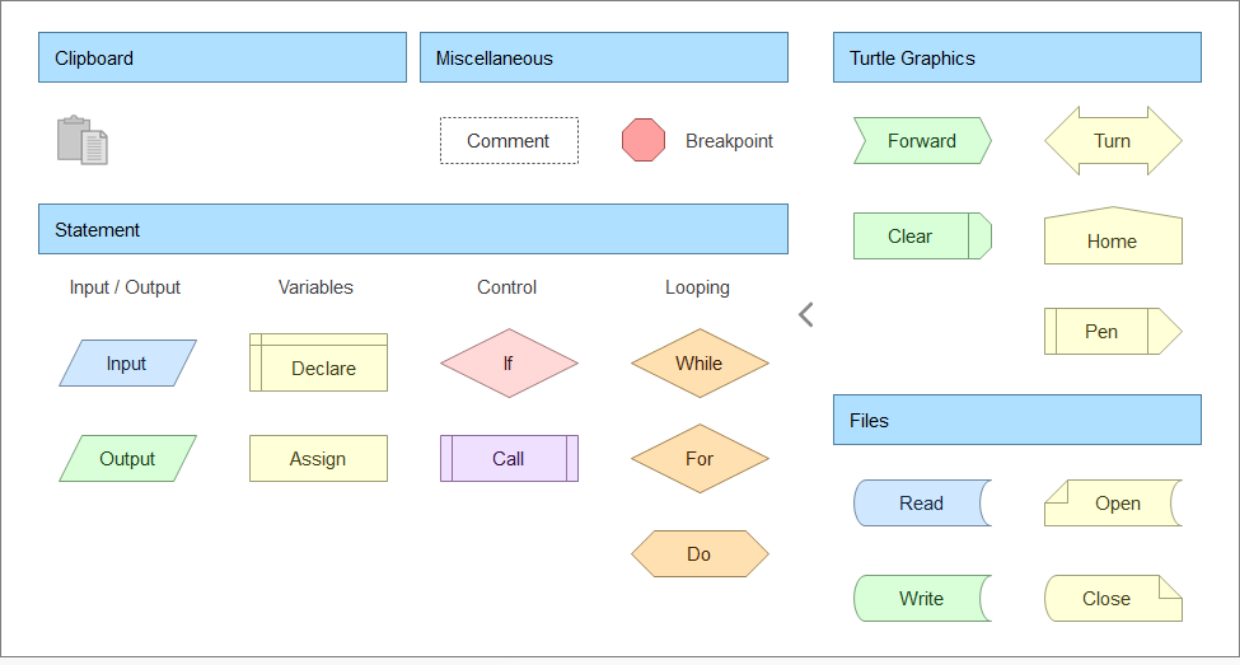

After you right click on in, you will see a window popup, listing all the shapes that you can add into your flowchart. Don't worry about the types of shapes that you see here, you will be taught on how to use it later.

Lets try to apply it on a scenario. For this example, lets use Scenario 1 from our Chapter 2 - Tutorial 1.

For this exercise, we are focusing on how to use Flowgorithm not how to create a correct flowchart. The usage of the shapes might be not the most accurate way, but take it easy. This exercise is emphasizing on the software.

Lets recall Scenario 1 from Chapter 2 - Tutorial 1 :

A government tax of 10% and service tax of 5% will be added to the price of a set of meal bought at MFC. Calculate the total price that Ali has to pay for a set of meal. Write a problem analysis for the given problem statement.

Creating Input and Output

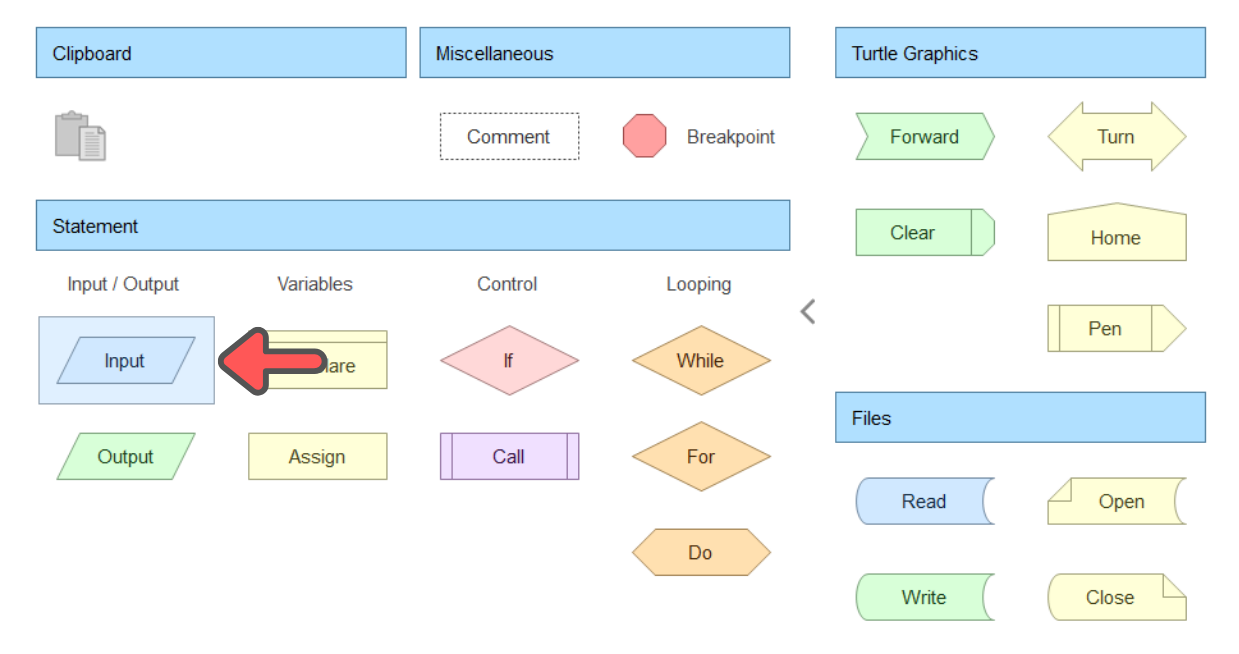

Click again the arrow between Main and End and open the popup window again. Under the Statement category, click the Input shapes.

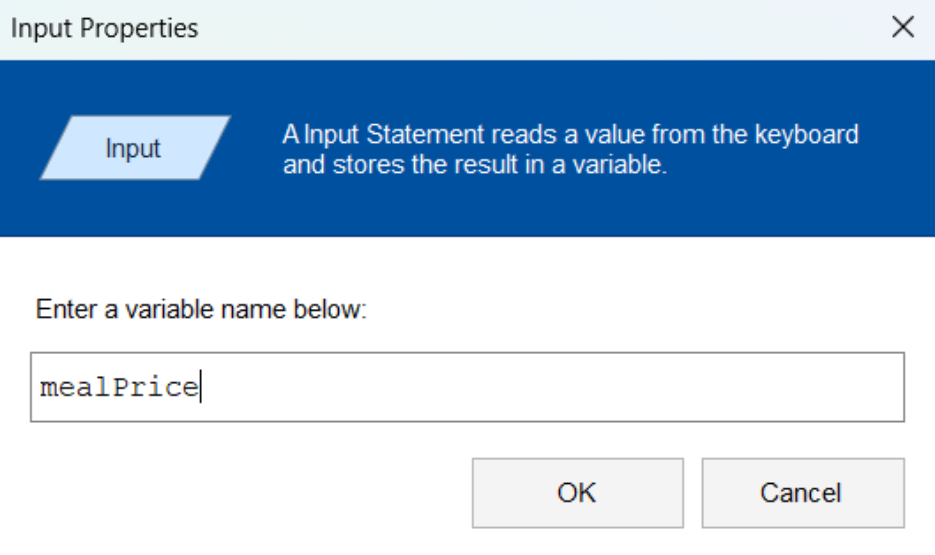

An Input shape will appear in between Main and End. So if you want to add a new shape in between the two old shape, click the line in between those two shapes. Now lets change the input in the Input shapes. Double click the Input shapes until a window appear that ask you to enter the variable name. For this questions, the input name is mealPrice.

NOTE

Any variable name that are used must only contains only letters and numbers, you cannot use special character such as - or _

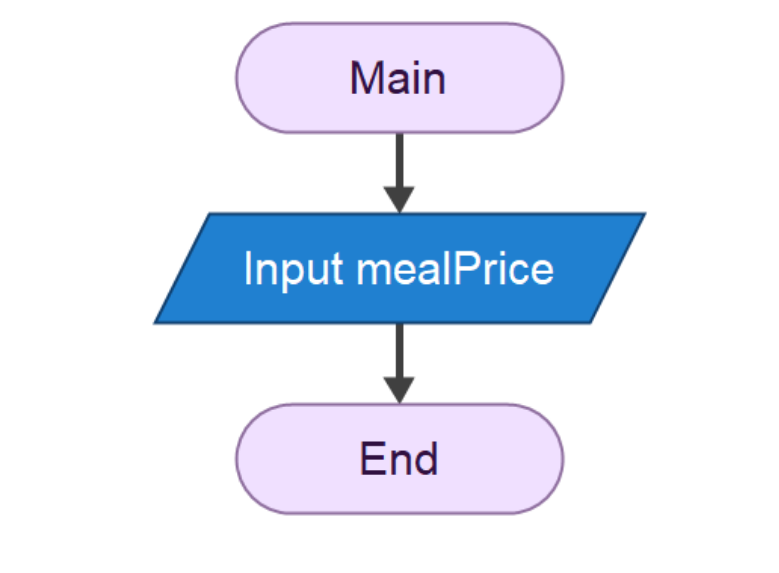

After finishing those steps, this is what you should see as belows.

Now repeat the process again, but this time, use the Output shape and enter the variable name for the output. Make sure that you click the arrow between Input and End so you will add the Output shape in the correct sequence.

Declaring the Variable

Even though we have declared our input and output, in Flowgorithm, we need to separately declare our variable first outside the Input and Output shape. So for your Input, click the arrow between Main and Input so we can declare the variable used in Input shape.

In the popup window, under the category Statement, choose the Declare shape.

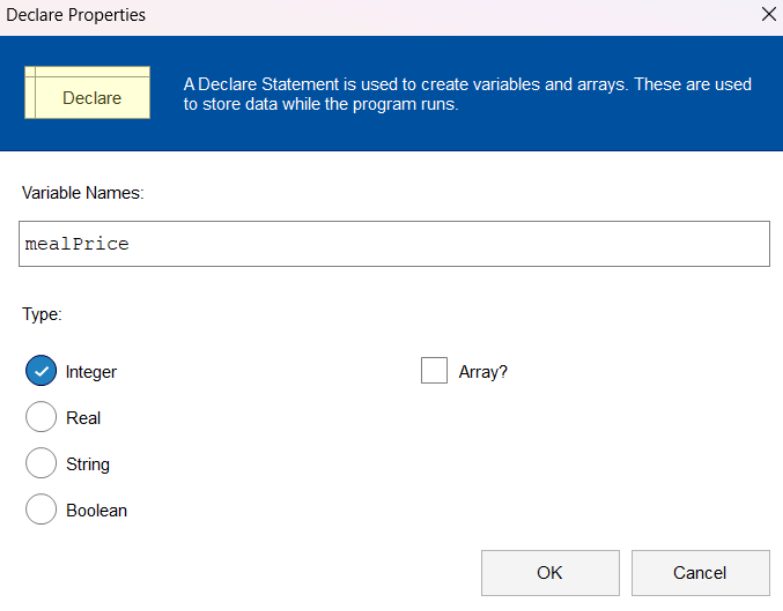

Double click the Declare shape and name the variable exactly as you put in the input, which in our case, is mealPrice and choose the Integer data type. Click OK to finalise it.

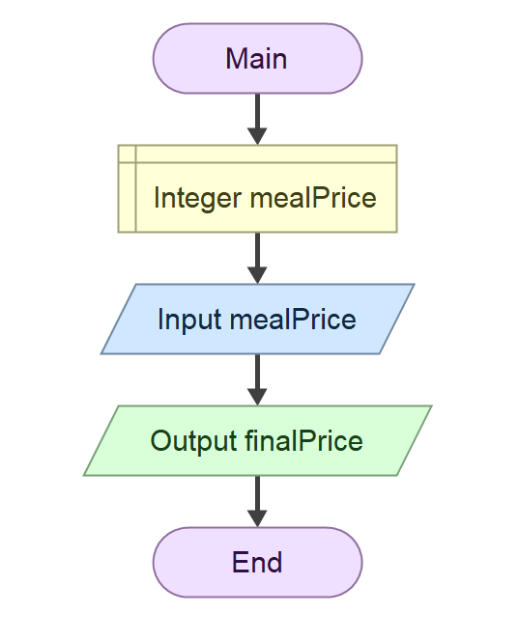

The result afterwards should look like the below

Repeat the steps again to declare the variable that are used in Output shape. After you finished that, click anywhere in the Flowgorithm and press Ctrl + S to save the file.

REMINDER

Make sure you click the correct arrow to ensure that the variable is declared in the correct sequence.

Creating Process

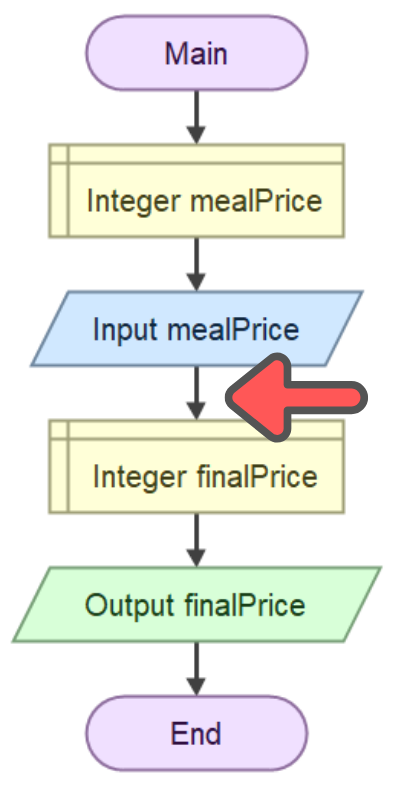

To create a process in Flowgorithm, click the arrow in between Declare **finalPrice** and Output` finalPrice.

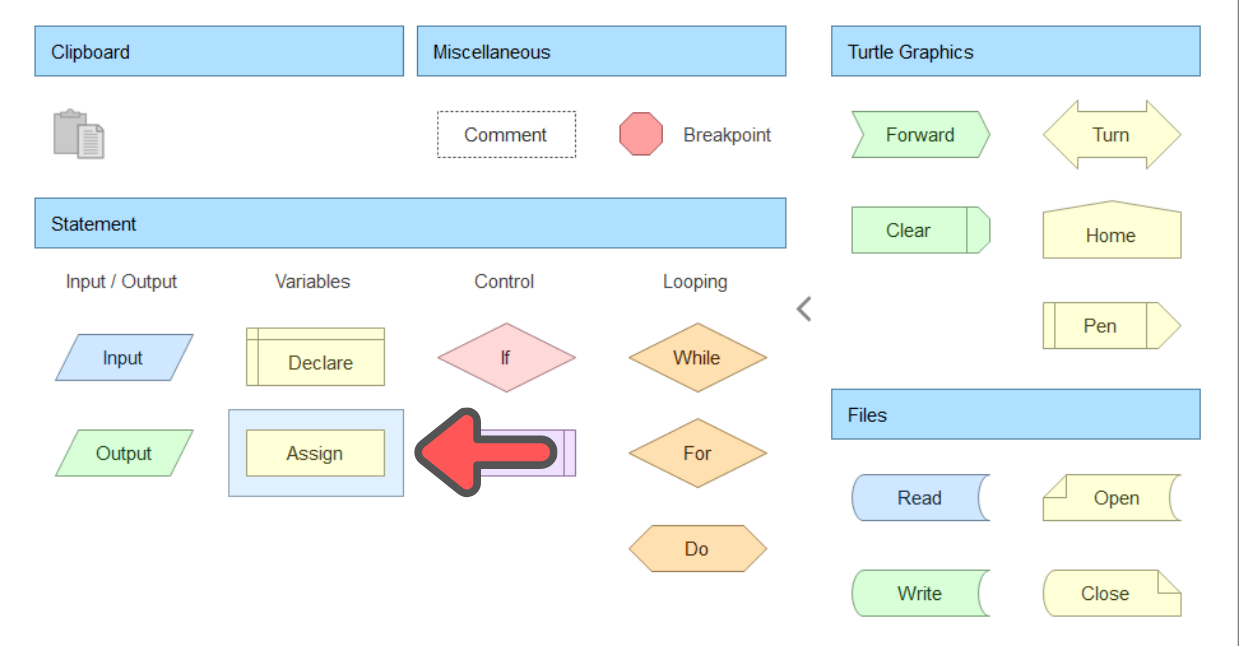

In the popup window, under the category Statement, choose the Assign shape.

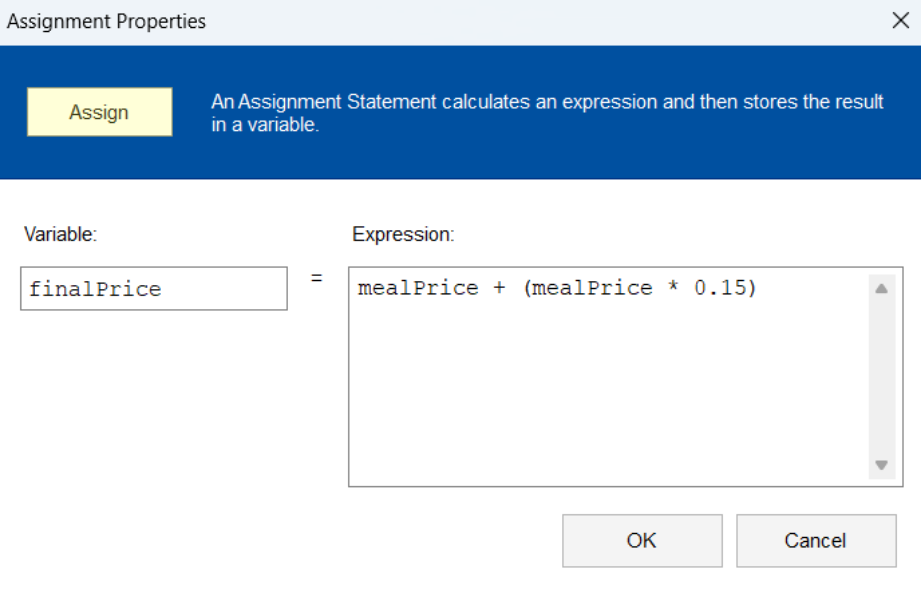

After the Assign shape has appeared between the Declare and Output shape, double click it, in the popup window, on the left side, in the variable box and on the right side in the Expression Box, follow the guide below.

Running and Testing

Before running the program, double-check if your answer is exactly like this.

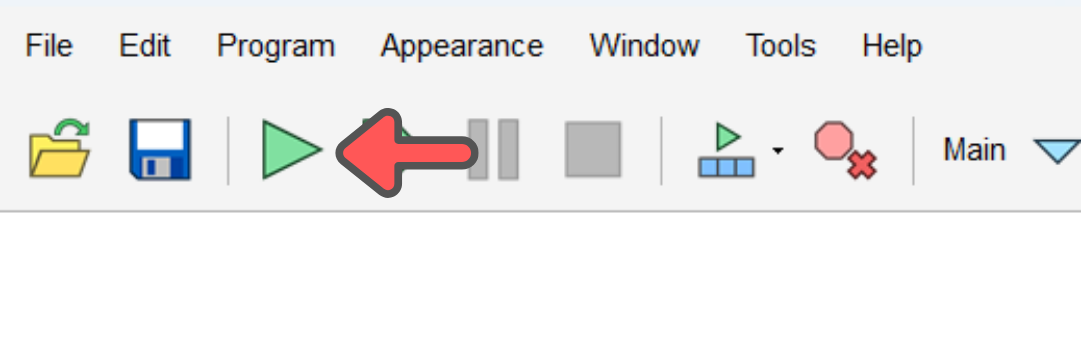

To run the program, click the green arrow at the top right corner of the window. A popup window with a box to enter an input will appear, enter any input and compare it with you calculator to see if the calculations are correct.

Copy and paste the saved file from the section earlier into /labs/lab03/ directory of your repo using VS Code. Then commit and push the code. Refer back to the previous lab on how to do commit and push if you don't remember how to.

Exporting Flowgorithm to Python

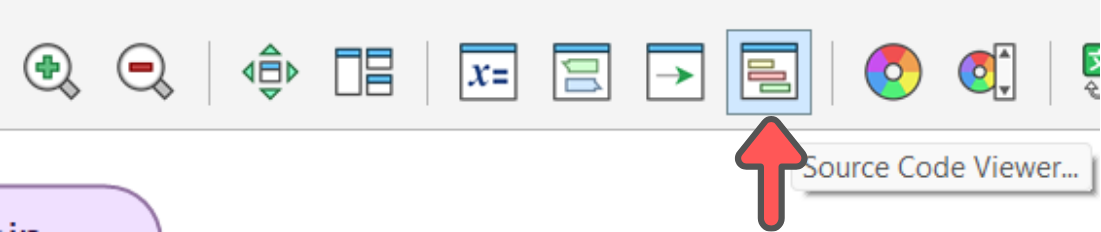

In VS Code, right click the lab03 folder and click New File. Name the file lab-3-1.py. In Flowgorithm, at the top bar, click the Source Code Viewer.

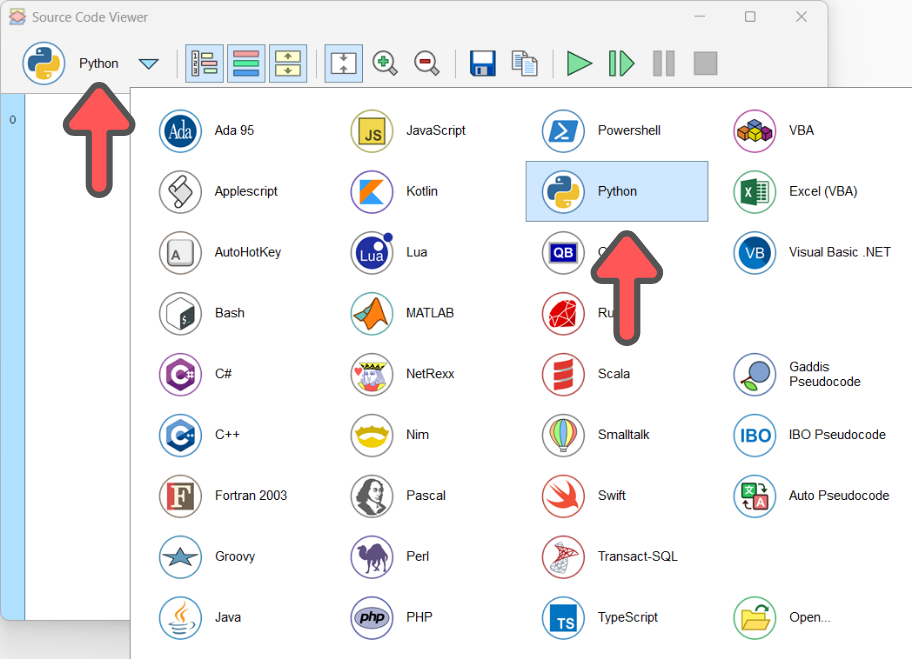

A popup window will appear, click the the dropdown at the top left of the window and choose Python.

Copy and paste the given code from the window into lab-3-1.py and save the file.

Scenario 1 – Hotel Reservation Question

Question: Mr Rahman plans to make a reservation for a hotel room in Langkawi Island. The basic rate is RM250.00 per night and service charge is 15% of the room rate. Determine the total payment if he books the hotel room for n nights.

Instruction:

• Flowgorithm file name: lab-03-2 → place in /labs/lab03/.
• Python file name : lab-03-2.py → place in /labs/lab03/.

Inputs (in order):

• NUM_NIGHT – integer number of nights

Outputs (in order):

• TOTAL_PAYMENT – sum of room rate and service charge (RM)

Scenario 2 – Storage Conversion Question

Question: Prompt user to input a size in Kilobyte, and convert the input into Megabyte, Gigabyte, Terabyte and Petabyte.

Instruction:

• Flowgorithm file name: lab-03-3 → place in /labs/lab03/.
• Python file name : lab-03-3.py → place in /labs/lab03/.

Inputs (order):

• kilobyte – real number in KB

Outputs (order):

megabyte

gigabyte

terabyte

petabyte

Scenario 3 – International Fax Cost Question

Question: Amin’s program calculates the cost of sending an international fax: service charge RM3.00 plus RM0.20 per page.

Instruction:

• Flowgorithm file name: lab-03-4 → place in /labs/lab03/.
• Python file name : lab-03-4.py → place in /labs/lab03/.

Inputs (order):

• pages – integer number of pages

Outputs (order):

TOTAL_COST – sum of service charge and pages cost

Scenario 4 – Cookie Calories Question

Question: A pack contains 40 pieces of cookies. The calorie info claims 10 servings per pack. Each serving equals 300 calories. Calculate the total calories consumed based on number of packs eaten.

Instruction:

• Flowgorithm file name: lab-03-5 → place in /labs/lab03/.
• Python file name : lab-03-5.py → place in /labs/lab03/.

Inputs (order):

• packs_eaten – integer number of packs consumed

Outputs (order):

• TOTAL_CALORIES – SERVINGS_CONSUMED * 300

Scenario 5 – Wage to Mow Yard Question

Question: The wage to mow the yard is based on diesel price RM2.00 per square meter. The yard area is the large rectangle minus the house rectangle. You are given the length and width of the yard boundary and the length and width of the house. Calculate the wage.

Instruction:

• Flowgorithm file name: lab-03-6 → place in /labs/lab03/.
• Python file name : lab-03-6.py → place in /labs/lab03/.

Inputs (order):

• yard_length – real number

• yard_width – real number

• house_length – real number

• house_width – real number

Outputs (order):

• WAGE – Total wage

Scenario 6 – Temperature Conversion Question

Question Prompt user to input a temperature in Celsius and convert it to Fahrenheit and Kelvin.

Instruction:

• Flowgorithm file name: lab-03-7 → place in /labs/lab03/.
• Python file name: lab-03-7.py → place in /labs/lab03/.

Inputs (in order)

• celsius – real number (°C)

Outputs (in order)

• fahrenheit

• kelvin

Scenario 7 – Simple Interest Calculator Question

Question: Prompt user for principal (P), annual rate (R %) and time (T years); calculate:

1. the simple interest earned over the entire period
2. the total amount to be repaid
3. the monthly interest amount (simple interest ÷ (T × 12))

Instruction:

• Flowgorithm file name: lab-03-8 → place in /labs/lab03/.
• Python file name: lab-03-8.py → place in /labs/lab03/.

Inputs (in order):

• principal – real number (RM)
• rate – real number (% per annum)
• time – real number (years)

Outputs (in order):

• interest
• total_amount
• monthly_interest

Push and Check Experimental

After you have finish answering all the questions, make sure to commit and push your files back to your repo.

In the GitHub repo, make sure that the commit passed all the test. Recall back here if you forgot how to check it.

ATTENTION

The GitHub Actions setup for this lab is experimental and can fail eventhough you have done everything correctly. Please let me know if you have reached this part and show me the Actions result.
